All Hydrophones are Active meaning that the amplifying electronics are inside the hydrophone casing. There are two MODES:

1. Long Distance HIGH GAIN with Automatic Gain Control and

2. Short Distance LOW GAIN with NO Automatic Gain Control.

The first mode is used to listen to creatures at a distance with no powered boats operating in the area. The second is used when other powered boats are close by. A contact at the surface end of the cable sets the MODE.

Sound is provided at "Line Levels" not "Microphone Levels". In addition to the plugs connecting to your ship board stereo amplifier system, a red wire connects to the stereo 12 Volt positive source. This supplies a low current bias to the hydrophone active electronics.

We offer free shipping.

Shopping with us is easy! Simply add your selections to the cart...

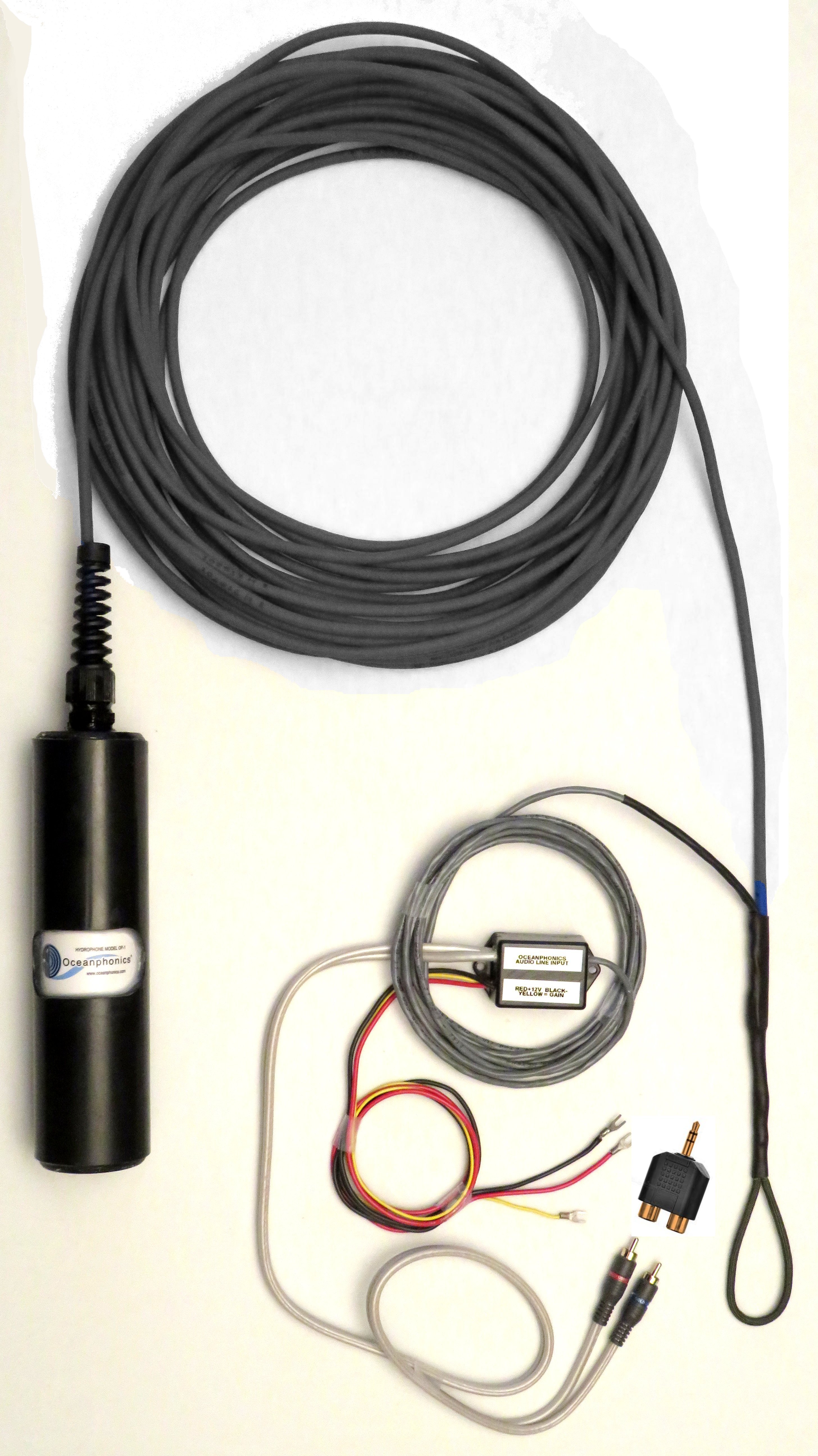

Model OP-1 Hydrophone with 25 foot cable

Model OP-1

Oceanphonics Hydrophone with commercial grade kevlar reinforced cable.  The surface interface box provides RCA plugs to the Line-Input of your stereo audio system; also contains an isolation audio transformer to eliminate ship electrical noise.

Strength member terminated in a soft eye to fasten to your vessel.  10 feet of audio cable from soft eye to audio and power connections*.

*If you require more than 10 feet of audio cable from the soft eye to the audio and power connection then please email your length to This email address is being protected from spambots. You need JavaScript enabled to view it. after placing your order.

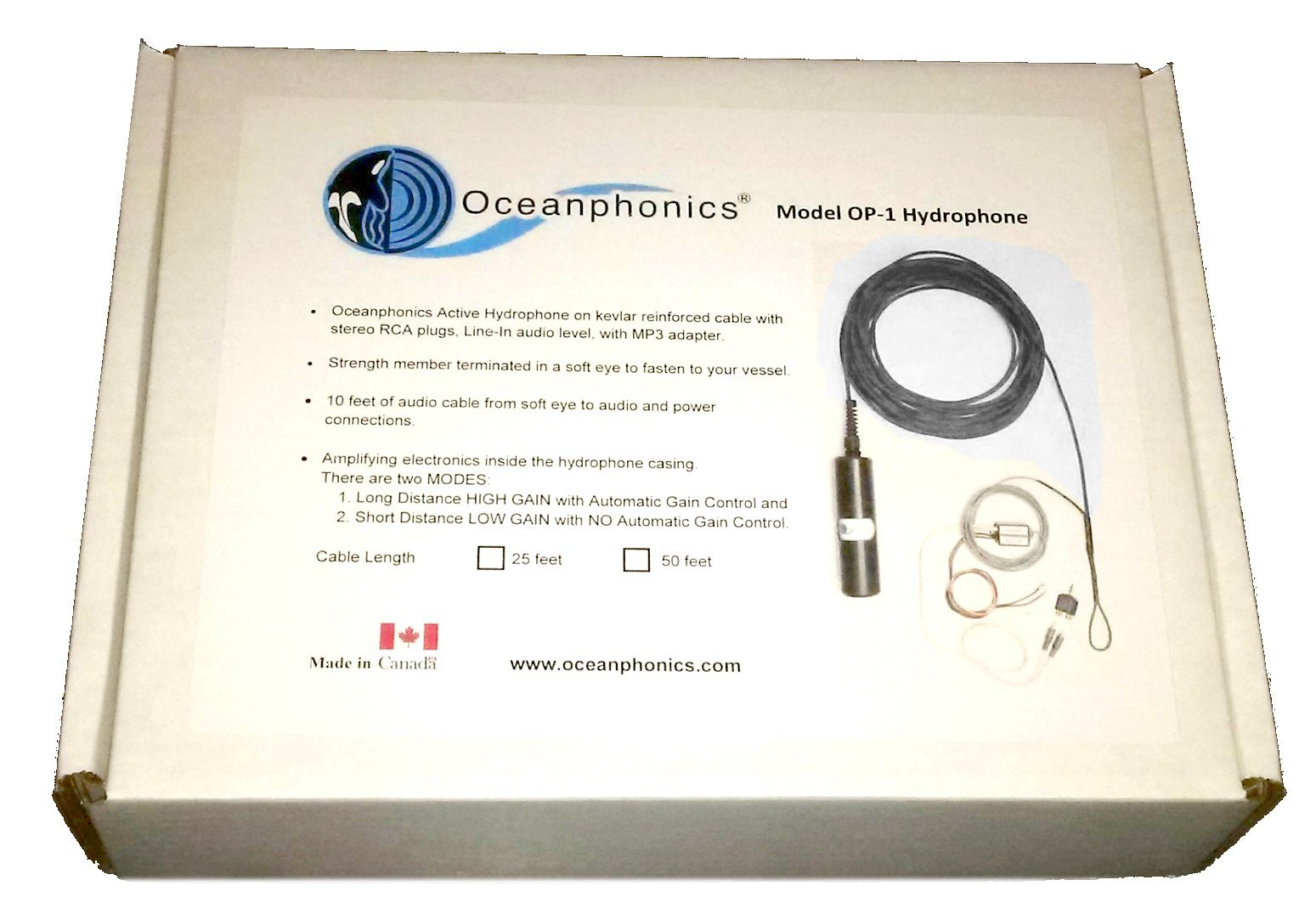

Model OP-1 in box


Click HERE for how you can connect this to your stereo system...
Model OP-1-25 Hydrophone with 25 feet of Kevlar reinforced cable | 999 CAD


Model OP-1-50 Hydrophone with 50 feet of Kevlar reinforced cable | 1099 CAD

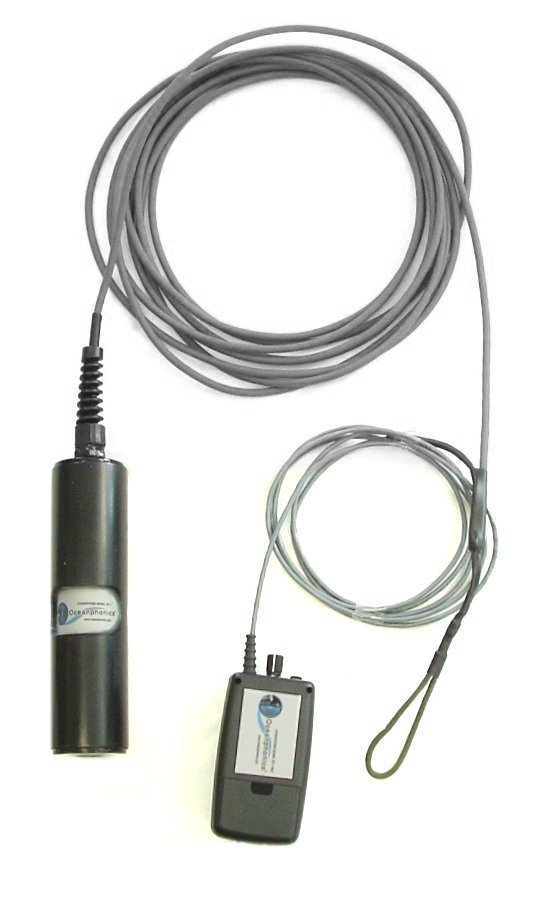

Model OP-1 hydrophone with 25 foot cable and 9V battery case for headphones

Model OP-1 with Option -9V



Oceanphonics Hydrophone with commercial grade kevlar reinforced cable.

This model substitutes the surface interface box with a 9 volt battery holder, switch/volume control and plug for a headphone (headphone not included.) This allows for standalone use of the hydrophone for one person.

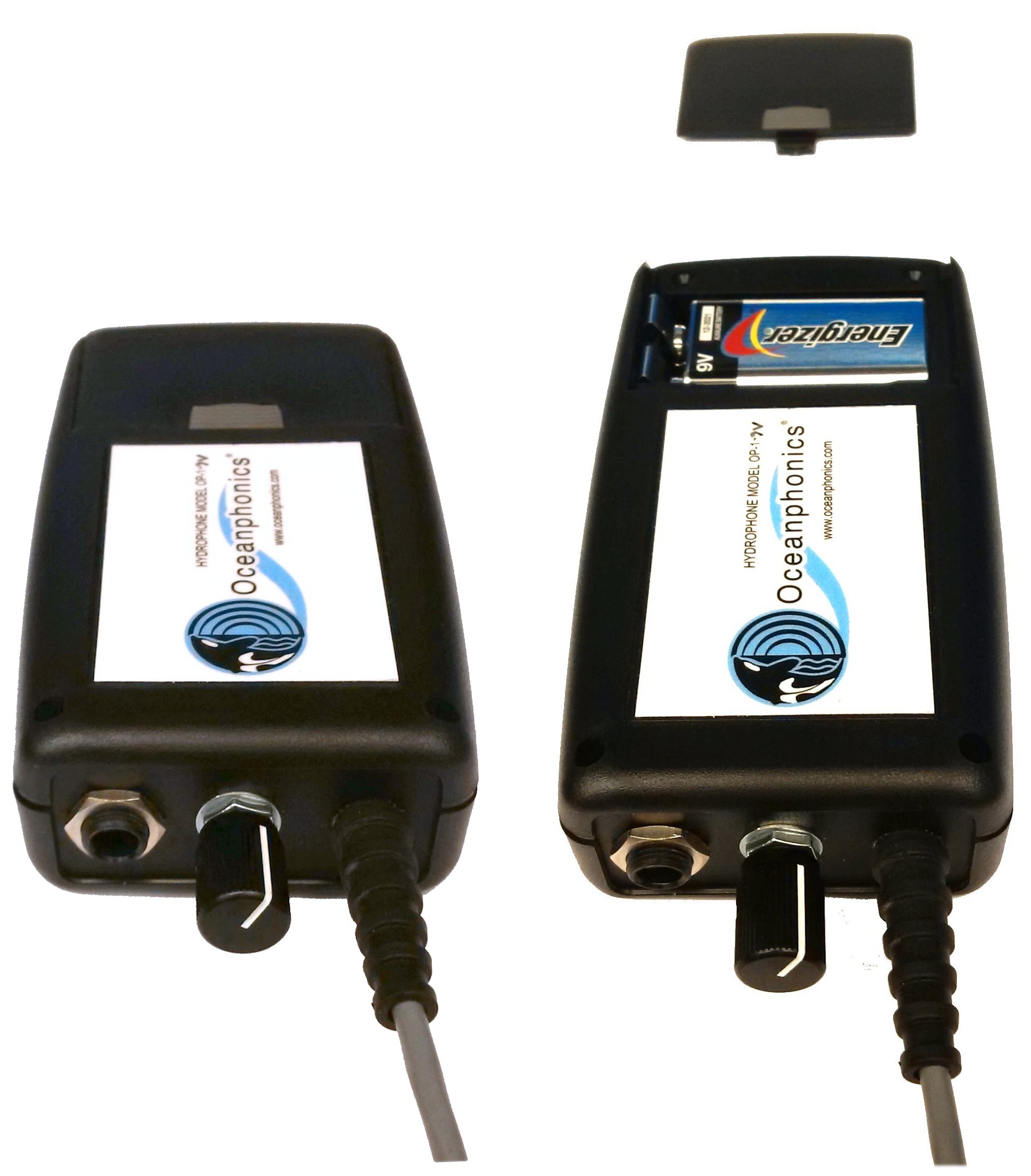

Model OP-1 hydrophone with 9V battery case and volume control for headphones
Headphone Jack - Switch/Volume Control - 9 Volt Battery Compartment
OP-1-25-9V Hydrophone on 25 foot cable with 9 Volt battery case and headphone connector | 999 CAD


OP-1-50-9V Hydrophone on 50 foot cable with 9 Volt battery case and headphone connector | 1099 CAD

 (Picture coming soon!)

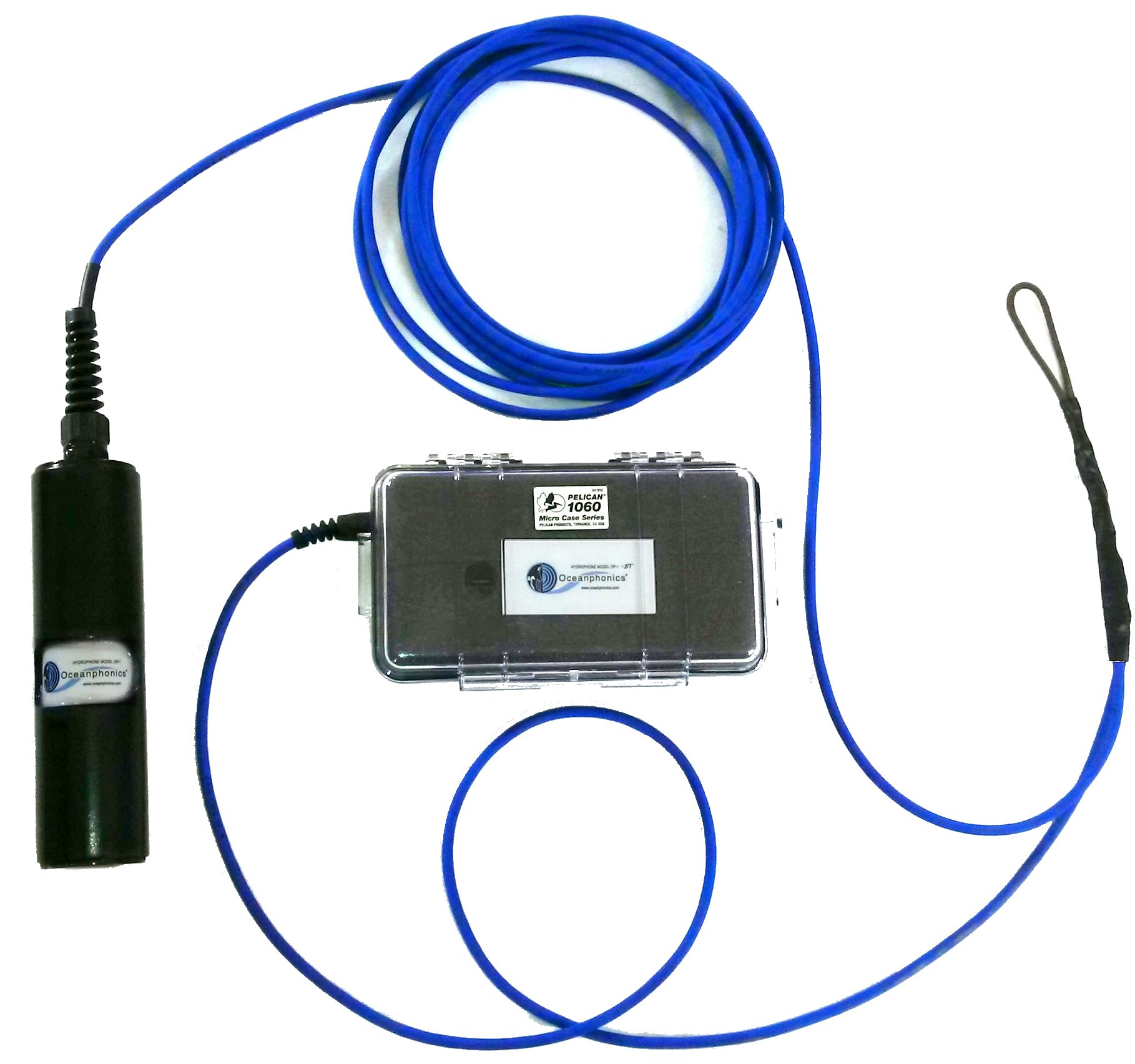

Model OP-1 with Option -BT

Model OP-1 Hydrophone with Bluetooth: this option substitutes the surface interface box with a small Pelican case for the surface, containing a battery holder for 8 AA alkaline cells and a Bluetooth transmitter.

Transmission to TWO Bluetooth headphones or loudspeaker after pairing.  (Headphones or loudspeaker not included.)

100 Foot range.

OP-1-25-BT Hydrophone on 25 foot cable with Bluetooth transmitter | 1439 CAD


OP-1-50-BT Hydrophone on 50 foot cable with Bluetooth transmitter | 1539 CAD

Model OP-AMP-1 Audio Amp upgrade package for OP-1 hydrophone

Model OP-AMP-1 recorder

Model OP-AMP-1

Waterproof Amplifier System as a package with the OP-1-25 or OP-1-50 Oceanphonics Hydrophone. This system includes:

  • Hydrophone integrated inside case ready to deploy, close case and operate
  • Splashproof Pelican case
  • Case may be closed and then operated by power switch and gain controls on outside of case
  • Charger included
  • Internal 5 AH 12 volt gelcell battery
  • 50 watt amplifier and loudspeaker with external protective grille
  • Sony audio recorder with USB for download of professional quality sounds
  • Software for sound analysis including TFFT and FFT, for PC or MAC



This option is ideal for ocean researchers or whale watching small craft.



Model OP-AMP-1 Audio Amp with recorder and integrated OP-1-25 hydrophone on 25 foot cable | 2479 CAD


Model OP-AMP-1 Audio Amp with recorder and integrated OP-1-50 hydrophone on 50 foot cable | 2579 CAD

Model OP-AMP-1 Audio Amp upgrade package for OP-1 hydrophone

Model OP-AMP-2

Waterproof Amplifier System as a package with the OP-1-25 or OP-1-50 Oceanphonics Hydrophone. This system includes:

  • Hydrophone integrated inside case ready to deploy, close case and operate
  • Splashproof Pelican case
  • Case may be closed and then operated by power switch and gain controls on outside of case
  • Charger included
  • Internal 5 AH 12 volt gelcell battery
  • 50 watt amplifier and loudspeaker with external protective grille



This option is ideal for whale watching from a small craft or as a portable all-in-one hydrophone system with loudspeaker.



Model OP-AMP-2 Audio Amp with integrated OP-1-25 hydrophone on 25 foot cable | 2199 CAD


Model OP-AMP-2 Audio Amp with integrated OP-1-50 hydrophone on 50 foot cable | 2299 CAD
